3通混合閥和蒸發器
精確控制氣液混合物
快速反應
高重復性
非常穩定的蒸汽流

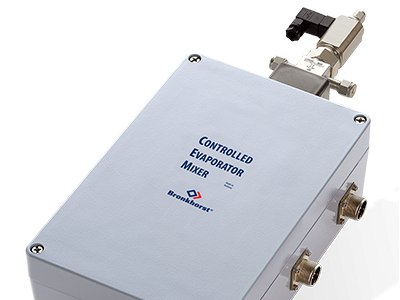

Bronkhorst® W-303B CEM 適用于精確的蒸汽流輸送,工作壓力在真空到100 bar之間,可混合最大流量 1200 g/h H2O (3200 g/h IPA) 和最大流量 100 ln/min載氣。溫控混合裝置與(熱式或科氏)液體流量計和載氣MFC組合使用,共同構成控制蒸發和混合(CEM)系統。
| 測量控制系統 | |
|---|---|
| Max. heating temperature | 200 °C |
| Heater capacity | 1000 W |
| Max. Kv-value | 6.6 x 10-2 |
| 機械部件 | |
|---|---|
| Material (wetted parts) | Stainless steel 316L or comparable |
| Pressure rating (PN) | 100 bar a |
| Max. ΔP | 5 … 40 bar d (depends on Kv-value; contact your distributor for details) |
| Process connections | Gas and liquid inlet: compression type or face seal couplings; Vapour outlet: 1/4″ tube (other options on request); Purge connection: 1/8″ OD or 1/8″ face seal |
| Seals | metal-to-metal |
| Protection class | IP40 |
| Plunger | Kalrez®; other on request |
| Connector | Amphenol 6-pin male |
| 電氣性能 | |
|---|---|
| Power supply | Mixing valve: +/-15…24 Vdc; Heater: 110-120 Vac or 220-240 Vac |
| Max. power consumption | Mixing valve: 4 W (max.); Heater: 1375 W (nominal) |
技術參數如有變更,恕不另行通知。
